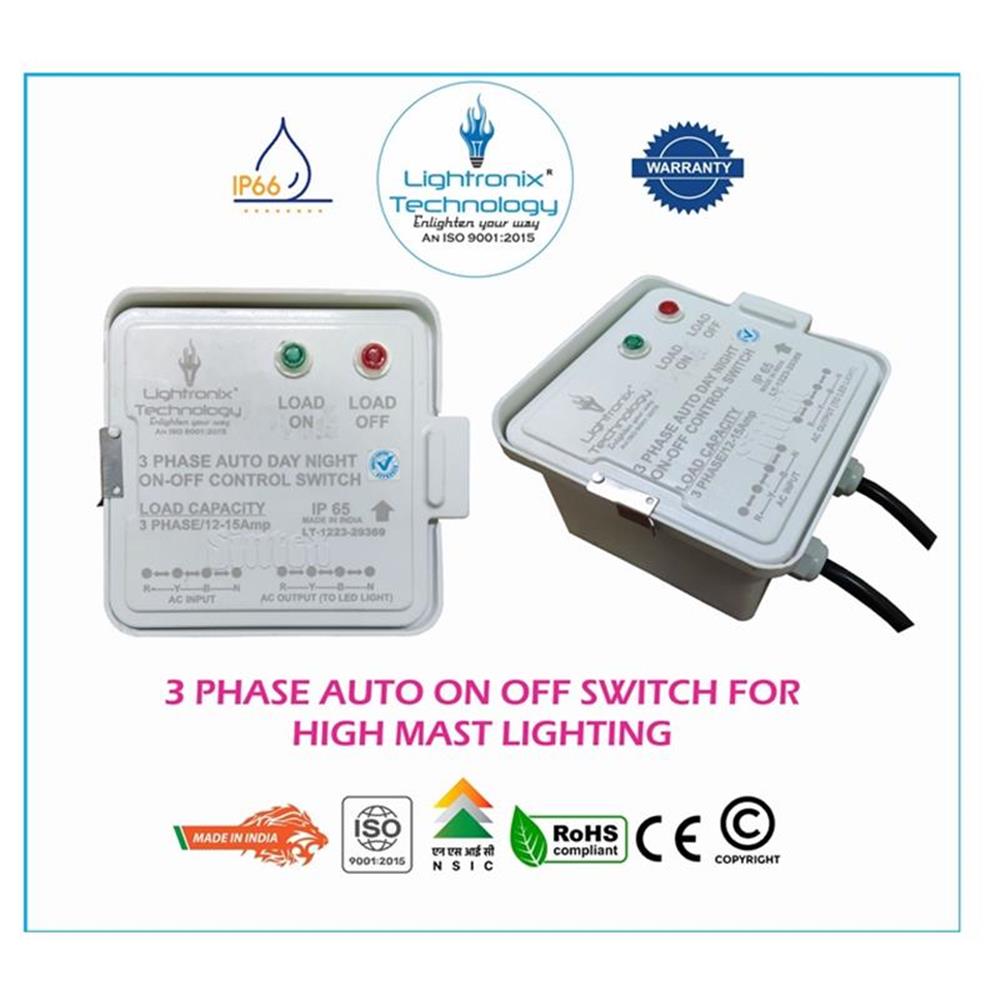

3 PHASE 15A DAY NIGHT SENSOR SWITCH FOR HIGH MAST LIGHTING

3 PHASE 15A DAY NIGHT SENSOR SWITCH FOR HIGH MAST LIGHTING



Model

LT-3 PHASE-ADNS (12A TO 20A)



Input Voltage

3 PHASE 415VAC / 0 to 15A (3 Phase)

Output Voltage/Current

3 PHASE 415VAC / 0 to 15A (±10% Tolerance)

Operating Frequency

50/60 Hz

External Load capacity

5.5KW (Maximum)

Off load power consumption

0.60 W

Surge protection

4-6 KV Protection



Dimension

180×170×110 mm (±2mm Tolerance)

Weight

1.2 KG  (±10gm Tolerance)

Sensor Position

Top of the Enclosure

Enclosure Material

ABS Enclosure IP65

Mounting Type

Pole Mount / Wall Mount

LED Indication

RED Indicator -  Load OFF (Normally ON at Day time)

Green Indicator – Load ON (Normally ON at Night time)







Warranty

1 Year (Warranty will not cover if it is in burn condition)

Additional Features

-Single shot ON-OFF operation.
-No flickering at load side.
-Heavy duty and long life circuit. Fit and Forget module.

-Premium quality components with higher accuracy.

Application

-Street light, High Mast Light, Security lights, Garden lights,
-Industrial lights, Outdoor lights

Function

Automatic switch ON light in NIGHT.
Automatic switch OFF light in MORNING.

Terminology

RED-YELLOW-BLUE-NEUTRAL - 3Ø Input AC Supply

RED-YELLOW-BLUE-NEUTRAL - 3Ø Output To Led Lights
