Model
|

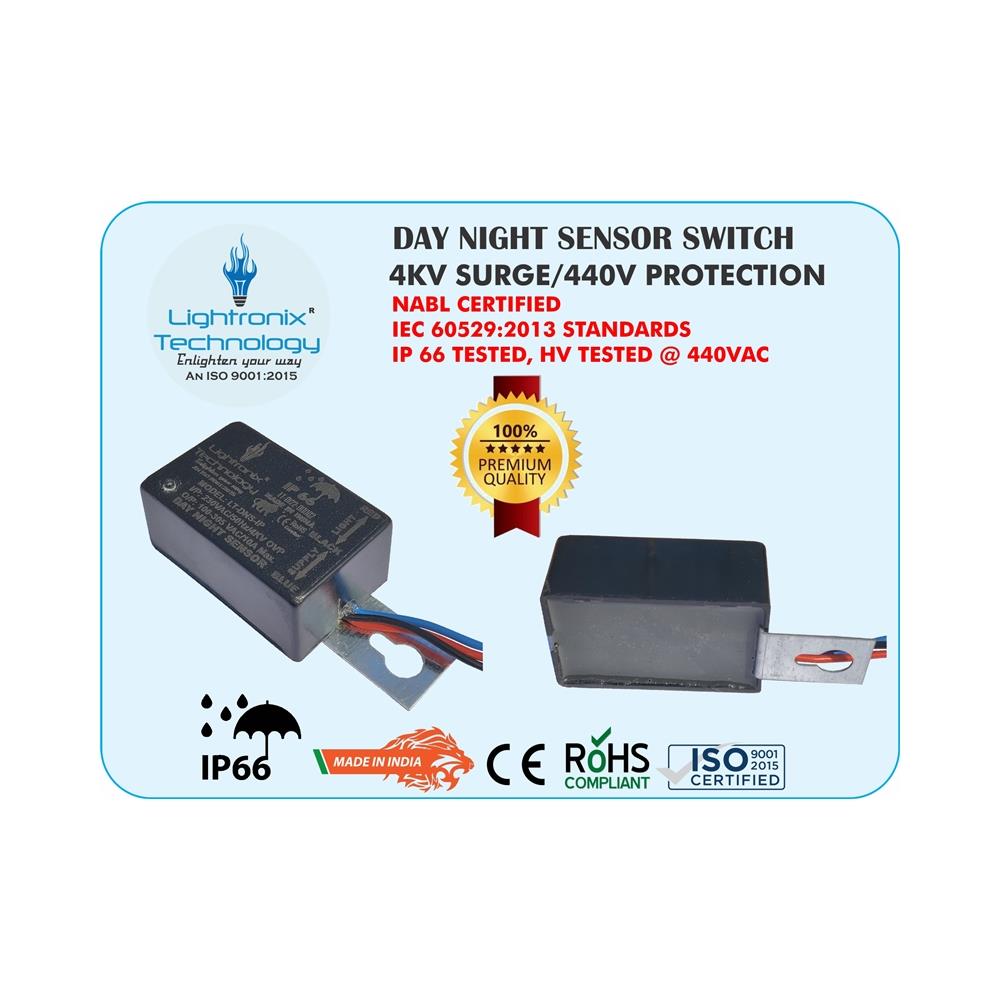

LT-DNS-IP (IP66 DAY NIGHT SENSOR)
Day night sensor switch, Dusk to down sensor, Photo sensor switch, Street light sensor, High mast sensor switch
|
|
Certification
|
IEC 60529:2013 IP66 TEST (NABL CERTIFIED)
|
|
Dimension
|
|
60×38×25 mm3 (±2mm Tolerance)
|
|
|
Weight
|
90 gm (IP) (±10gm Tolerance)
|
|
Input Voltage
|
100-305 VAC (440 Volt Protection) (HV TESTED @ 440VAC)
|
|
Operating Frequency
|
50 Hz
|
|
External Load capacity
|
Up to 300 Watt
|
|
Output Voltage/Current
|
240VAC / 10 A / 16A / 20A (±10% Tolerance)
|
|
Off load power consumption
|
0.54 W
|
|
Surge protection
|
4 KV Protection
|
|
Ambient Light
|
6 lux to 40 lux (± 5% tolerance)
lux level for switching on from 6 to 14 LUX
lux level for switching off from 20 to 35 LUX
|
|
Availability
|
With IP66 Potted
|
|
Potting Material
|
Hybrid polymer (Thermal conductivity – 0.7)
|
|
Warranty
|
1 Year ( Warranty will not cover if sensor is in burn condition)
|
|
Additional Features
|
-With best quality and Original components for automatic circuit.
-Single shot ON-OFF operation.
-No flickering at load side.
-Heavy duty and long life circuit. Fit and Forget module.
|
|
Application
|
-Street light, Security lights, Garden lights,
-Industrial lights, Outdoor lights
|
|
Function
|
Automatic switch ON light in NIGHT.
Automatic switch OFF light in MORNING.
|
|
Terminology
|
AC Input – BLUE & BLACK Wires
Output – RED & BLACK Wires (Connect with Light or Load)
(0.5 square mm copper cable – 200mm length)
|
