Model
|

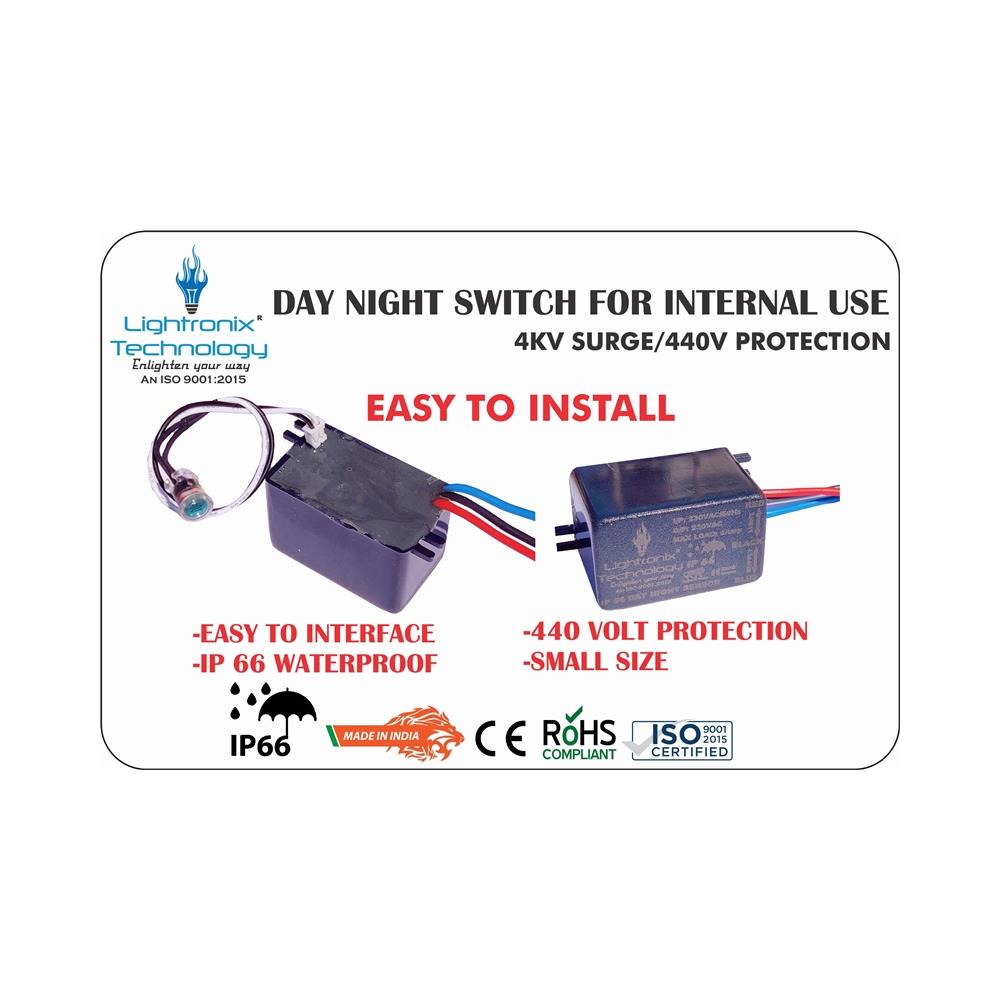

LT-DNS-IP-INTERNAL
Day night sensor switch, Dusk to down sensor, Photo sensor switch, Street light sensor
|
|
Dimension
|
|
42×28×25 mm3 (±2mm Tolerance)
|
|
|
Weight
|
60 gm (IP) (±10gm Tolerance)
|
|
Input Voltage
|
230 VAC (440 Volt Protection)
|
|
Operating Frequency
|
50 Hz
|
|
External Load capacity
|
Up to 200 Watt
|
|
Output Voltage/Current
|
240VAC / 06 A (±10% Tolerance)
|
|
Off load power consumption
|
0.54 W
|
|
Surge protection
|
4 KV Protection
|
|
Availability
|
With IP66 Potted
|
|
Potting Material
|
Hybrid polymer (Thermal conductivity – 0.7)
|
|
Warranty
|
1 Year ( Warranty will not cover if sensor is in burn condition)
|
|
Additional Features
|
-With best quality and Original components for automatic circuit.
-Single shot ON-OFF operation.
-No flickering at load side.
-Heavy duty and long life circuit. Fit and Forget module.
|
|
Application
|
-Street light, Security lights, Garden lights,
-Industrial lights, Outdoor lights
|
|
Function
|
Automatic switch ON light in NIGHT.
Automatic switch OFF light in MORNING.
|
|
Terminology
|
AC Input – BLUE & BLACK Wires
Output – RED & BLACK Wires (Connect with Light or Load)
(0.5 square mm copper cable – 200mm length)
|
