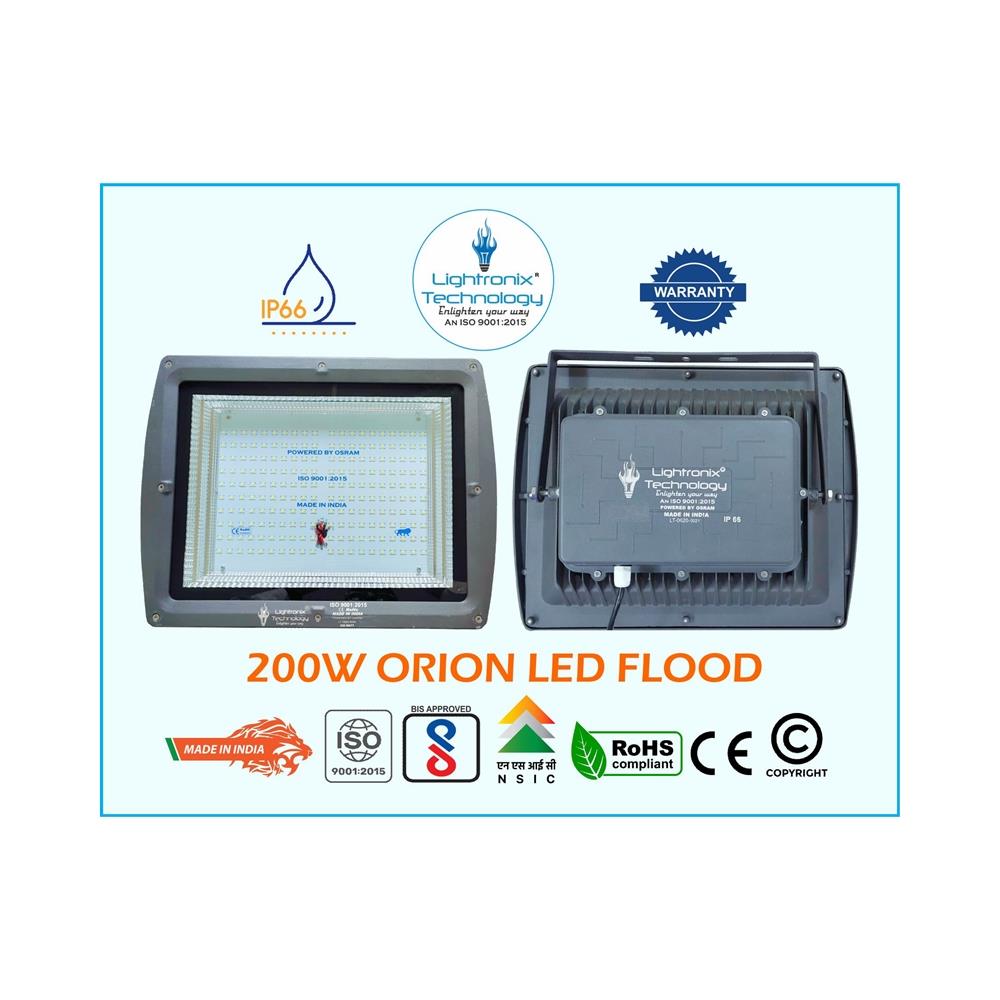

200W LED FLOOD LIGHT ORION

200W LED FLOOD LIGHT ORION



Model

LT-200WFL-ORION

200 watt led flood light, 200 watt flood light, flood light, 200 watt back choke flood light

Certification

ISO, CE, RoHS, BIS, LM79 or LM80, TM

Number of LEDs

200

Wattage

200 W

Weight

5.22 Kg

LED Brand

OSRAM/Cree/Edison/Crescent/Kwality/Samsung

(As per requirements)

Power Consumption

200 Watt

LED Lumens Efficiency

140 Lumens / Watt

Maximum Lumens

28000 lm

Beam Angle

120 Degree

LED Working Voltage

+6.2 VDC

LED Working Current

150mA

Input Voltage

85 – 300 VAC(Auto cut off above 310V)(Protection up to 440 V)

Operating Frequency

50/60 Hz

Power Factor

>0.95

Ambient Temp(Ta)

50°C

Case Temp(Tc)

75°C

CRI

80

Efficiency

>87%

Color

White/Warm White (As per order)

Color Temperature

2700-6500K (As per order)

Body Type

Pressure die cast Aluminum alloy for housing gear, Extruded aluminum lamp housing (heat sink) for Better heat transmission.

IP rating

IP65/IP66

Working Hours

>50000 hours

Surge Protection

Inbuilt Driver surge protection – 4 KV

Extra SPD surge protection – 10 KV (As per Requirement)

Electrical Protections for LED Driver

- Single shot no-load latching protection /

  output short-circuit protected    with auto-recovery

-Under voltage protection

-Output short circuit protection

- Auto-recovering thermal shutdown with large hysteresis protects Both components and printed circuit board

- No damage during brown-out conditions

LED PCB Detail

Thickness 1.6 mm (±5% tolerance)

PCB material – Aluminum-copper

Copper layer thickness – Standard 0.35 micron

Copper conductivity – 1 Watt

Additional Features

- Plug & Play Device

- Corrosion free Body Material, Dust proof, Rugged

- Easy to Install, Easy to maintain

- Suitable in any Environmental Condition

- Save Up to 70% of Electricity

Terminology

Earth            – Green or Yellow

Line Positive – Red or Brown

Neutral         – Blue or Black
