Model
|

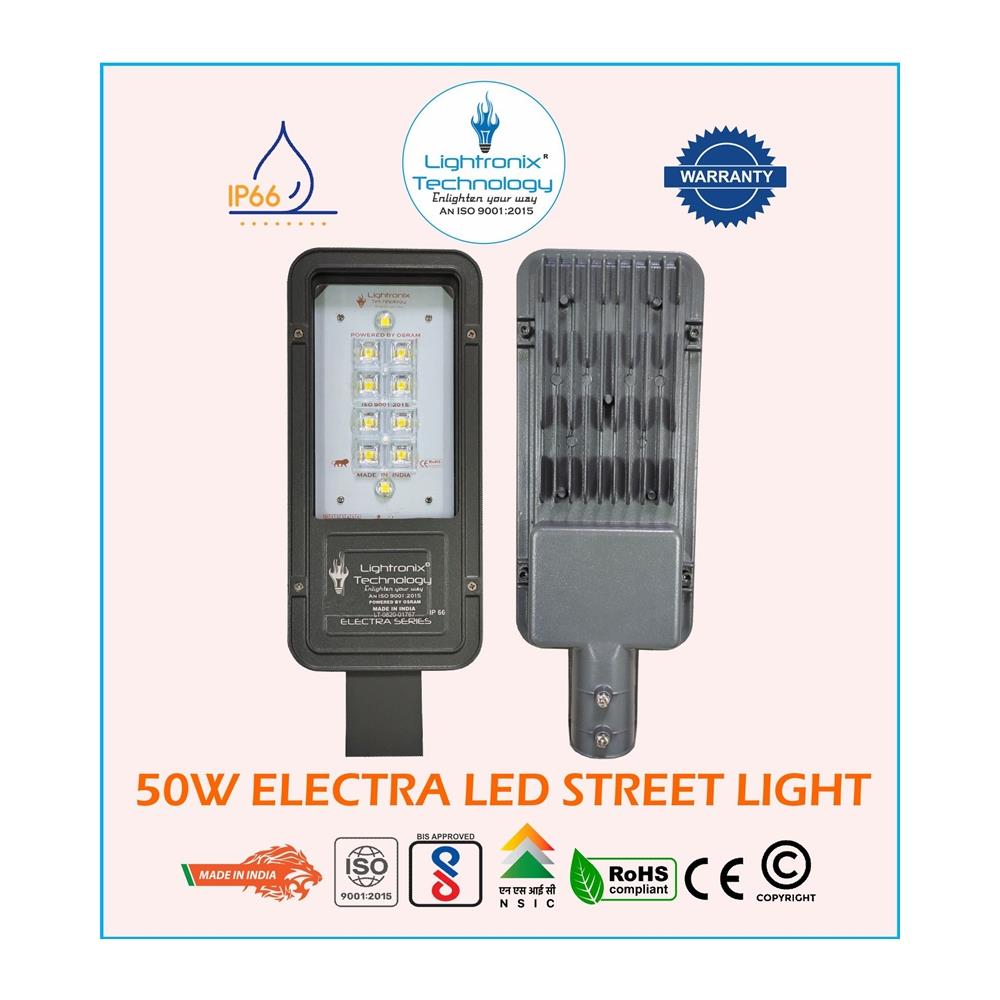

LT-50WSL-F-ELECTRA
|
|
Certification
|
ISO, CE, RoHS, BIS, LM79 or LM80, TM
|
|
Wattage
|
50
|
|
Dimension
|
380 ×145 × 65 mm3
|
|
Weight
|
1.5 Kg
|
|
Number of LEDs
|
10
|
|
Optical lens
|
30, 45, 60 0r 90 degree Polycarbonate lens
|
|
LED Brand
|
5 watt of OSRAM Led
|
|
Power Consumption
|
50 Watt
|
|
LED Lumens Efficiency
|
140 Lumens / Watt
|
|
Maximum Lumens
|
7000 lm
|
|
Beam Angle
|
30, 45, 60, 90 Degree lens (As per Customers Requirement)
|
|
LED Working Voltage
|
6.2 VDC
|
|
LED Working Current
|
750 mA/Constant currant Driver
|
|
Input Voltage
|
85 – 300 VAC(Auto cut off above 310V)(Protection up to 440 V)
|
|
Operating Frequency
|
50/60 Hz
|
|
Power Factor
|
>0.95
|
|
Ambient Temp(Ta)
|
50°C
|
|
Case Temp(Tc)
|
75°C
|
|
CRI
|
80
|
|
Pole entry Diameter
|
42 mm
|
|
Efficiency
|
>87%
|
|
THD
|
≤10
|
|
Working Humidity
|
10% to 90%
|
|
Color
|
White/Warm White (As per order)
|
|
Color Temperature
|
2700-6500K (As per order)
|
|
Body Type
|
Pressure die cast Aluminum alloy for housing gear, Extruded aluminum lamp housing (heat sink) for Better heat transmission.
|
|
IP rating
|
IP65/IP66
|
|
Working Hours
|
>50000 hours
|
|
Surge Protection
|
Inbuilt Driver surge protection – 4 KV
Extra SPD surge protection – 10 KV (As per Requirement)
|
|
Electrical Protections for LED Driver
|
- Single shot no-load latching protection /
output short-circuit protected with auto-recovery
-Under voltage protection
-Output short circuit protection
- Auto-recovering thermal shutdown with large hysteresis protects Both components and printed circuit board
- No damage during brown-out conditions
|
|
LED PCB Detail
|
Thickness 1.6 mm (±5% tolerance)
PCB material – Aluminum-copper
Copper layer thickness – Standard 0.35 micron
Copper conductivity – 1 Watt
|
|
Additional Features
|
- Plug & Play Device
- Corrosion free Body Material, Dust proof, Rugged
- Easy to Install, Easy to maintain- Suitable in any Environmental Condition
- Save Up to 70% of Electricity
|
|
Terminology
|
Earth – Green or Yellow
Line Positive – Red or Brown
Neutral – Blue or Black
|
